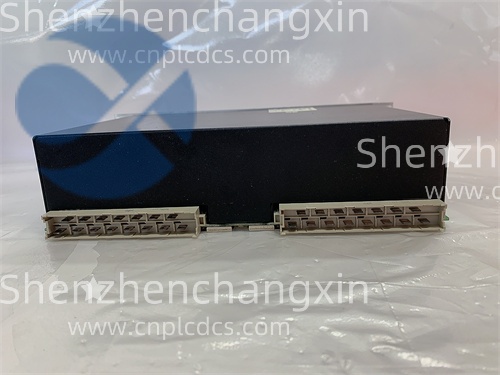

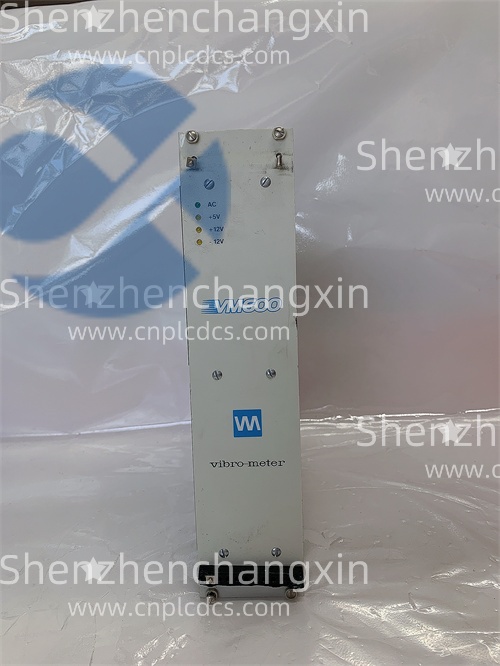

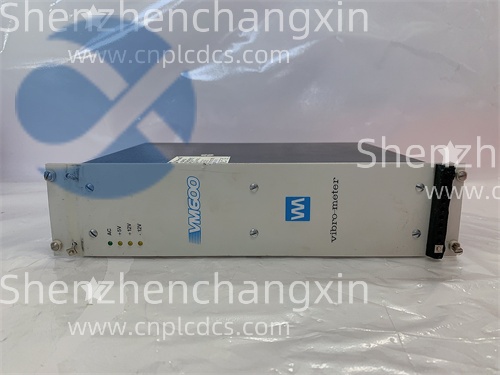

The Vibro-meter VM600 RPS6U 200-582-500-013 is a critical Relay and Power Supply Module manufactured by Vibro-meter, a Baker Hughes business specializing in condition monitoring and machinery protection. This unit is a dedicated component designed for the VM600 MPC4 Monitoring System, providing robust, regulated power to the monitoring rack and featuring relay outputs for critical alarm and shutdown signals.
Application Scenarios:
Inside the control panel of a gas turbine powering a compressor station, the VM600 system continuously monitors shaft vibration, speed, and temperature. A sudden rise in bearing vibration must not only be displayed but must also trigger immediate, failsafe actions to protect millions of dollars worth of equipment. The Vibro-meter VM600 RPS6U 200-582-500-013 module is the linchpin in this protective chain. It takes the 24Vdc control power and converts it to the clean, stable voltages required by the sensitive monitoring cards in the MPC4 rack. Simultaneously, when a monitoring channel detects a dangerous condition, it commands this module. The RPS6U's heavy-duty, safety-rated relays then physically close to send a trip signal directly to the turbine's emergency shutdown system, bypassing any software logic to ensure an immediate halt. This module addresses the core pain points of unreliable system power and slow, non-failsafe alarm response, providing the dual foundation of system power integrity and guaranteed protective action.
Key Parameters:
Technical Principles and Innovative Values:
The Vibro-meter VM600 RPS6U integrates two mission-critical functions—system power distribution and protective relay interfacing—into a single, reliable module.
Innovation Point 1: Integrated Power Conditioning & Distribution. The module is not a simple pass-through. It contains advanced power conditioning circuitry that takes a often-noisy plant 24Vdc supply and generates clean, isolated, and regulated voltage rails (+5V, +/-12V, etc.) required by the sophisticated monitoring cards (like vibration input modules) in the same rack. This ensures the entire monitoring system is not affected by external power fluctuations, providing a stable foundation for accurate measurement.
Innovation Point 2: Failsafe, Hardware-Based Relay Action. The relay outputs are driven directly by the monitoring cards' logic. This creates a direct, hardware-based protective link. Even in the unlikely event of a communication bus failure within the system, the individual monitoring channel can still command its assigned relay on the RPS6U to trip. This hardware-centric safety architecture is crucial for achieving Safety Integrity Level (SIL) or similar certifications for machinery protection.
Innovation Point 3: High-Density, Configurable Protection. The module consolidates multiple relay channels in one slot. Each relay is typically individually configurable (e.g., Alarm, Danger, Normal) per monitoring point and features Form C contacts, offering maximum wiring flexibility (Normally Open, Normally Closed). This design reduces cabinet space, simplifies wiring, and provides a centralized, reliable interface for all critical shutdown and alarm signals from the rack.
Application Cases and Industry Value:
Case Study: Overhaul of a Hydroelectric Turbine Protection System
A major hydroelectric facility was upgrading its legacy vibration monitoring system on its 200MW Francis turbines. The new system needed to be exceptionally reliable, provide clear alarm indications, and integrate seamlessly with the existing hardwired emergency stop circuit. The engineering team selected the VM600 MPC4 system with the Vibro-meter VM600 RPS6U 200-582-500-013 as the core interface module.
The RPS6U was installed in the MPC4 rack located in the unit control board. Vibration transmitters on the turbine bearing housings fed signals to the VM600 input cards. The relay outputs from the RPS6U were wired directly to the turbine's primary trip solenoid and to prominent alarm annunciator panels in the control room. During commissioning, a simulated overspeed condition was tested. The speed monitoring card instantly commanded its assigned relay on the RPS6U, which physically closed to complete the trip circuit, successfully shutting down the simulated system. The plant engineer noted, "The RPS6U module gives us absolute confidence. We have a clear, hardwired path from sensor to shutdown. Its dual role also simplified our cabinet layout and power supply design significantly." The project enhanced protection reliability, reduced false trip risks from power noise, and streamlined maintenance.
Related Product Combination Solutions:
The VM600 RPS6U is the power and relay hub for the MPC4 monitoring rack. Key related components include:
VM600 MPC4 Rack (e.g., 200-580-xxx-xxx): The main chassis that houses the RPS6U, input modules, and processor, providing the backplane for all communication and power.
VM600 Input/Output Modules (e.g., IOC4T, IOC4T-S): These are the interface modules for vibration, speed, temperature, or process signals. They are powered by the RPS6U and command its relays.
VM600 Processor Module (e.g., CPUn): The system processor that coordinates all modules in the rack, including configuration and communication with the RPS6U.
Vibro-meter Transmitters (e.g., CXM sensor series): The vibration, speed, or position sensors that provide the raw signal data to the system, ultimately leading to potential relay actions from the RPS6U.
VM600 Configuration Software (e.g., VM600 Config Tool): The software used to configure the parameters and assignment of each relay on the RPS6U module.
VM600 PSU Module: In some configurations, a separate primary power supply unit may be used to feed the RPS6U module.
Installation, Maintenance, and Full-Cycle Support:
Installation of the Vibro-meter VM600 RPS6U module is designed for technicians familiar with the VM600 system. The module slides into its designated slot in the MPC4 rack and is secured with screws. Critical steps involve connecting the primary 24Vdc power input with correct polarity and wiring the relay output contacts to the designated safety and alarm circuits. All wiring must follow strict plant safety and isolation standards, especially for trip circuits. Configuration is performed via the VM600 software, where each relay is assigned to a specific channel and function (Alert, Danger, OK).
Maintenance is primarily preventive. Regular checks should verify the integrity of power and relay connections. During scheduled outages, functional testing of the relay outputs by simulating alarm conditions from the monitoring software is recommended to ensure the entire protective chain is operational. The module itself is highly reliable with no user-serviceable parts. If a fault is indicated (via system diagnostics or LED), the standard procedure is replacement of the entire module.
We provide full-cycle support for the Vibro-meter VM600 RPS6U 200-582-500-013. This includes confirming compatibility with your existing MPC4 rack and VM600 system version, supplying genuine or certified refurbished units, and providing technical documentation for installation and configuration. We understand the critical role this module plays in machinery protection and are committed to supporting your operational and maintenance needs with reliable components and expert advice.
Need a reliable power and relay interface for your VM600 MPC4 system? Contact us for availability, technical specifications, and support for the genuine Vibro-meter VM600 RPS6U 200-582-500-013 and all related system components.
